HVAC Standard for Revit
A range HVAC components and Air Terminals ready to work for you.
Perfectly suited for Architects using full Revit
- Free up modelling time with consistent families
- Whole system of families that all work together
- Ordered, structured and flexible families built for usability
Air Terminals
HVAC equipment
“The content that RevitWorks provides is of the highest quality I have seen when it comes to Revit families. Not only are they easy and intuitive to use on real world projects, but they are a massive time saver for any business serious about BIM. RevitWorks content is well worth the investment”
Samual McAlister
Senior Technical Sales Specialist, Autodesk Australia Pty Ltd
Great range of customisable families
HVAC Equipment
25 pre-built fully parametric mechanical equipment family types ready for use:
Split Systems (heat pumps and air conditioning units) Heat Recovery Units | Surface Mounted Fans | Louvres
Air Terminals
Over 215 pre-built air terminals, with or
without plenums, ready for use:
Supply Air / Return Air / Exhaust Air Terminals

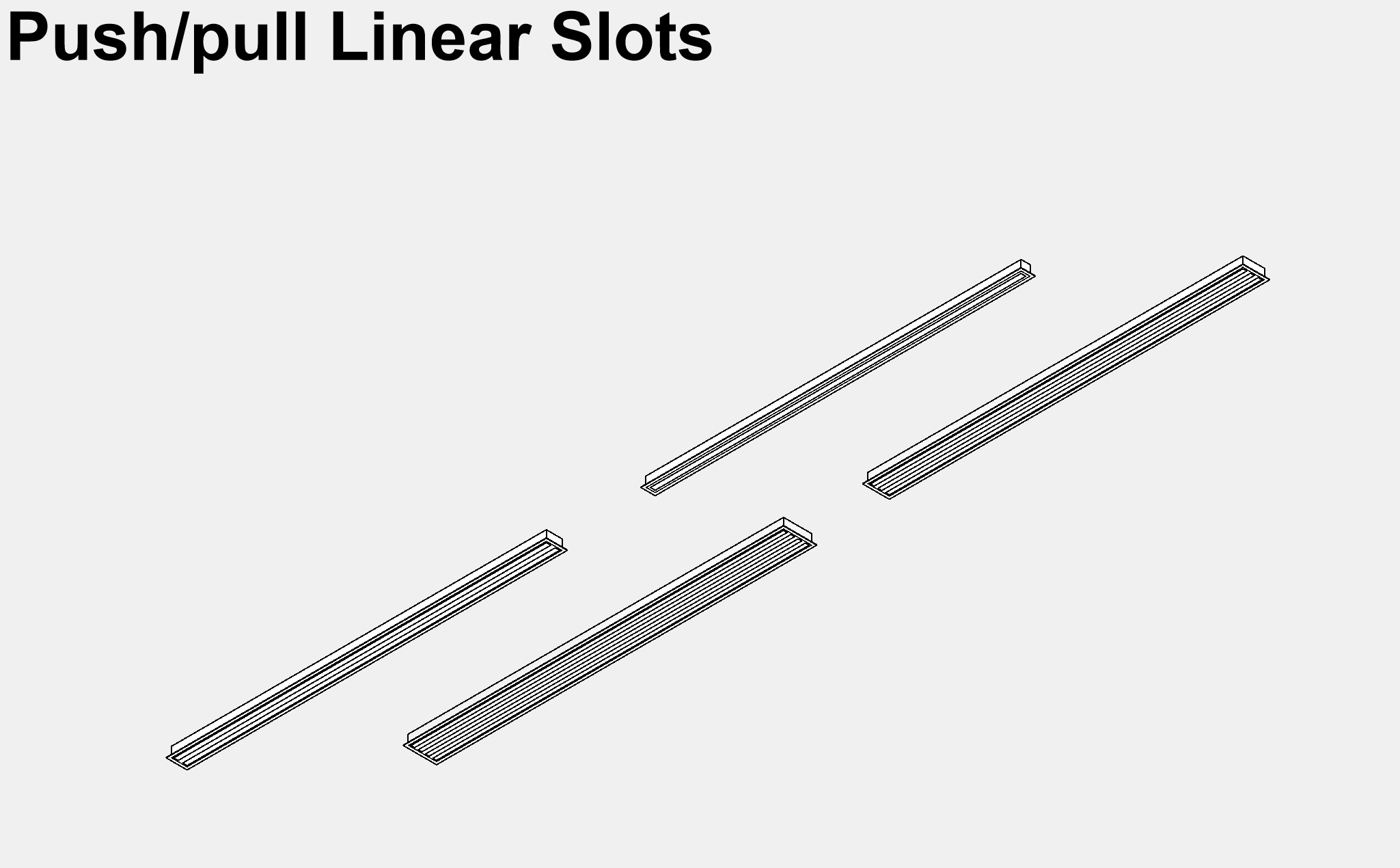

Active / Passive Chilled Beams | Fan Coil Unit Cassettes Supply Air Diffusers | Return Air Grilles | Linear Slots
Duplicate types and amend to create new variants
Air Terminal selections and graphics
RevitWorks air terminals come with pull down selections for 15 fully modelled rectangular and round diffuser types.
Render ready and you can add your own!
Special Features
All items come pre-built with must-have controls and features (where relevant for the type of fixture) including:
- Render ready
- Air terminal symbols show on sloped ceilings as expected
- Fully parametric exterior louvre families (round, trapezoidal, rectangular)
Standard HVAC Technical Information
Detailed information in easy to print PDF's & our extensive help system
Catalog:
The full range
Catalog of the 85 HVAC families and 245 preconfigured types you receive within this package
Technical Specifications:
HVAC Equipment
Technical information including object styles, detail levels, shared parameter usage and parameter explanations
Technical Specifications:
Air Terminals
Technical information including object styles, detail levels,
shared parameter usage and parameter explanations
"I have used RevitWorks products extensively for the past four years. The structure and logic of each tool makes design and documentation quick and efficient."
Michelle Saldanha - Stephenson&Turner NZ Ltd
Ready to Turbocharge Your Business?
HVAC Standard - Pricing & Options
Preview
Content for Revit
& Revit LT
Versions 2024, 2023 & 2022*
Sample content
for you to try
- Small selection of HVAC components
- Contains image of the whole collection
- Fully customisable
FREE
Standard
Content for Revit
& Revit LT
Versions 2024, 2023 & 2022*
Best for Architects
A limited range mainly just including second fix items (i.e. air terminals etc)
- Over 240 preconfigured HVAC components
- Consistent functionality & placement controls
- Fully customisable
starting from
$475 USD
Suite
Buy several products together and save $$$
PREMIUM SUITE
Best for Architects with full Revit includes:
- HVAC Standard
- Electrical Premium
*View Local Standards* - Door Factory Premium
- Casework Standard
- Fixings and Flashings
starting from
$1503 USD
Premium
Content for Revit
Versions 2024, 2023 & 2022*
Best for HVAC Enginneers
- Over 520 preconfigured HVAC components
- Consistent functionality and placement controls
- Fully customisable
starting from
$995 USD
All pricing is in $US. Local sales tax may be added at time of purchase.
* Older versions are no longer supported but may be available upon request.
UPGRADES
If you have previously purchased any of our products you will be able to upgrade that product to the latest version at a fraction of the full purchase price.
HVAC Standard UPGRADE Pricing
All components will automatically upgrade themselves when loaded into a newer version of Revit (just like any other Revit family). An upgrade is only required when we release new components and features.
There are no current upgrades available |
